Rugosity grid derived from gridded bathymetry of Apra Harbor, Guam U.S. Territory

Metadata also available as [Questions & Answers] - [Parseable text] - [XML]

Metadata:


Identification_Information:
Citation:
Citation_Information:
Originator:
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
Publication_Date: 20100901
Title:
Rugosity grid derived from gridded bathymetry of Apra Harbor, Guam U.S. Territory
Geospatial_Data_Presentation_Form: raster digital data
Online_Linkage: <http://www.soest.hawaii.edu/pibhmc>
Online_Linkage:
<http://www.soest.hawaii.edu/pibhmc/pibhmc_cnmi_apra_geomorph.htm>
Description:
Abstract:
Rugosity is derived from gridded (1 m cell size) multibeam bathymetry, collected aboard the Survey Vessel Swamp Fox using the Terrain Modeler with rugosity methods by Jeff Jenness (2003). Cell values reflect the surface area/planimetric area ratio for the area contained within that cell's boundaries. They provide indices of topographic roughness & convolutedness.
Purpose:
The data were derived in support of NOAA Coral Reef Conservation Program goals. Goal 1 is to map all U.S. Coral Reef Ecosystems. This data set specifically addresses Objective 1 and 4: to develop high-resolution benthic maps and to characterize priority deep water reefs and associated habitats. This derivative of bathymetry provides a GIS layer that may be used for benthic and essential fish habitat characterization, and for the study of geologic features. By combining the dataset with bathymetry, backscatter, other derivatives, and in situ data, they collectively compose benthic habitat maps which are designed to be used to understand and predict moderate depth (~20m to 150m) benthic habitats for different organisms that inhabit coral reef ecosystems.
Supplemental_Information:
Survey data were acquired by the United States Navy (USN) Fleet Survey Team (FST) with Survey Vessel Swamp Fox. A Reson 8125 multibeam echosounder was mounted from an arm on the port side of the vessel. The Klein 3000 Side Scan Sonar is operated in the stern-towed configuration. Additional detailed information on data acquisition, equipment configuration, and corrections can be found in the Data Acquisition and Processing Report (DAPR) that can be accessed at: www.soest.hawaii.edu/pibhmc and is included in the ZIP file containing the bathymetry grids. References: Jenness, J. 2003. Grid surface areas: Surface area and ratios from elevation grids [Electronic manual]. Jenness Enterprises: ArcView Extensions. <http://www.jennessent.com/arcview/arcview_extensions.htm> Lundblad et al., 2006, A benthic terrain classification scheme for American Samoa, Marine Geodesy, 29(2):89 - 111. <http://www.csc.noaa.gov/products/btm/>
Time_Period_of_Content:
Time_Period_Information:
Range_of_Dates/Times:
Beginning_Date: 20080329
Ending_Date: 20080504
Currentness_Reference: ground condition
Status:
Progress: Complete
Maintenance_and_Update_Frequency: As needed
Spatial_Domain:
Bounding_Coordinates:
West_Bounding_Coordinate: 144.614
East_Bounding_Coordinate: 144.676
North_Bounding_Coordinate: 13.464
South_Bounding_Coordinate: 13.418
Keywords:
Theme:
Theme_Keyword_Thesaurus: CoRIS Theme Thesaurus
Theme_Keyword:
EARTH SCIENCE > Oceans > Bathymetry/Seafloor Topography > Rugosity
Theme_Keyword:
EARTH SCIENCE > Oceans > Bathymetry/Seafloor Topography > Bathymetry
Theme:
Theme_Keyword_Thesaurus: None
Theme_Keyword: Multibeam sonar
Theme:
Theme_Keyword_Thesaurus: CoRIS Discovery Thesaurus
Theme_Keyword: Geographic Information > Habitats
Theme:
Theme_Keyword_Thesaurus: ISO 19115 Topic Category
Theme_Keyword: imageryBaseMapsEarthCover
Theme_Keyword: 010
Place:
Place_Keyword_Thesaurus: None
Place_Keyword: UTM Zone 55
Place_Keyword: Apra Harbor
Place_Keyword: Guam Island
Place_Keyword: U.S. Territory
Place_Keyword: United States of America
Place:
Place_Keyword_Thesaurus: CoRIS Place Thesaurus
Place_Keyword:
OCEAN BASIN > Pacific Ocean > Western Pacific Ocean > Guam > Apra Harbour (13N144E0051)
Place_Keyword:
COUNTRY/TERRITORY > United States of America > Guam > Apra Harbour (13N144E0051)
Place:
Place_Keyword_Thesaurus: CoRIS Region
Place_Keyword: Guam
Access_Constraints: None
Use_Constraints:
These data are not to be used for navigation purposes. Please acknowledge the NOAA Pacific Islands Fisheries Science Center (PIFSC) Coral Reef Ecosystem Division (CRED) and the Pacific Islands Benthic Habitat Mapping Center, and the Joint Institute for Marine and Atmospheric Research (JIMAR) and School of Ocean and Earth Science and Technology (SOEST), University of Hawaii as the sources of this information.
Point_of_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization:
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
Contact_Address:
Address_Type: mailing and physical address
Address: NOAA IRC
Address: NMFS/PIFSC/CRED
Address: 1845 WASP Blvd., Building 176
City: Honolulu
State_or_Province: HI
Postal_Code: 96818
Contact_Voice_Telephone: 808 725-5360
Contact_Facsimile_Telephone: 808 725-5429
Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
Contact_Instructions: e-mail preferred

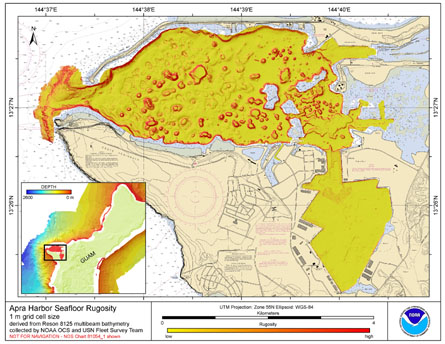

Browse_Graphic:
Browse_Graphic_File_Name:
<http://www.soest.hawaii.edu/pibhmc/CNMI_images/apra_rug_1m_445.jpg>
Browse_Graphic_File_Description: Gridded Bathymetry
Browse_Graphic_File_Type: JPG
Data_Set_Credit:
NOAA PIFSC CRED and the Pacific Islands Benthic Habitat Mapping Center, JIMAR and SOEST
Security_Information:
Security_Classification_System: Not applicable
Security_Classification: Unclassified
Security_Handling_Description: Not applicable

Data_Quality_Information:
Attribute_Accuracy:
Attribute_Accuracy_Report:
Data are collected for resource management and research purposes and are tested for internal consistency; however, no effort is made to compare these data to external references or to other published data.
Logical_Consistency_Report:
These data are believed to be logically consistent though no tests were performed
Completeness_Report: Complete
Positional_Accuracy:
Horizontal_Positional_Accuracy:
Horizontal_Positional_Accuracy_Report:
Horizontal positioning system: see DAPR Horizontal position accuracy: see DAPR
Vertical_Positional_Accuracy:
Vertical_Positional_Accuracy_Report:
Range resolution of sonar: varies with depth Raw sounding resolution: see DAPR
Lineage:
Process_Step:
Process_Description:
Rugosity was derived from the gridded multibeam bathymetry (apra_bty_1m) using the Benthic Terrain Modeler (BTM). The BTM may be downloaded from <http://www.csc.noaa.gov/products/btm/>. The BTM, written for ArcGIS 8.x or 9.x, includes a component for deriving rugosity using methods by Jeff Jenness as he wrote for ArcView 3.x.
Process_Date: 20100810

Spatial_Data_Organization_Information:
Direct_Spatial_Reference_Method: Raster
Raster_Object_Information:
Raster_Object_Type: Grid Cell
Row_Count: 5061
Column_Count: 6664
Vertical_Count: 1

Spatial_Reference_Information:
Horizontal_Coordinate_System_Definition:
Planar:
Grid_Coordinate_System:
Grid_Coordinate_System_Name: Universal Transverse Mercator
Universal_Transverse_Mercator:
UTM_Zone_Number: 55
Transverse_Mercator:
Scale_Factor_at_Central_Meridian: 0.9996
Longitude_of_Central_Meridian: 147
Latitude_of_Projection_Origin: 0
False_Easting: 500000
False_Northing: 0
Planar_Coordinate_Information:
Planar_Coordinate_Encoding_Method: Row and Column
Coordinate_Representation:
Abscissa_Resolution: 1
Ordinate_Resolution: 1
Planar_Distance_Units: meters
Geodetic_Model:
Horizontal_Datum_Name: D_WGS_1984
Ellipsoid_Name: WGS_1984
Semi-major_Axis: 6378137.000000
Denominator_of_Flattening_Ratio: 298.257224

Entity_and_Attribute_Information:
Overview_Description:
Entity_and_Attribute_Overview: none
Entity_and_Attribute_Detail_Citation: none

Distribution_Information:
Distributor:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization:
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
Contact_Address:
Address_Type: mailing and physical address
Address: NOAA IRC
Address: NMFS/PIFSC/CRED
Address: 1845 WASP Blvd., Building 176
City: Honolulu
State_or_Province: HI
Postal_Code: 96818
Contact_Voice_Telephone: 808 725-5360
Contact_Facsimile_Telephone: 808 725-5429
Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
Contact_Instructions: e-mail preferred
Resource_Description: Downloadable Data
Distribution_Liability:
These data are not to be used for navigational purposes. NOAA makes no warranty regarding these data, expressed or implied, nor does the fact of distribution constitute such a warranty. NOAA cannot assume liability for any damages caused by any errors or omissions in these data, nor as a result of the failure of these data to function on a particular system.
Standard_Order_Process:
Digital_Form:
Digital_Transfer_Information:
Format_Name: Arc ASCII
Format_Information_Content:
Arc ASCII can be converted to Arc Raster using ArcToolbox Conversion Tools (ASCIItoRaster).
Digital_Transfer_Option:
Online_Option:
Computer_Contact_Information:
Network_Address:
Network_Resource_Name:
<ftp://ftp.soest.hawaii.edu/pibhmc/website/data/cnmi-guam/benthichabitatlayers/apra_rug_1m.zip>
Fees: None

Metadata_Reference_Information:
Metadata_Date: 20140312
Metadata_Review_Date: 20101202
Metadata_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization:
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
Contact_Address:
Address_Type: mailing and physical address
Address: NOAA IRC
Address: NMFS/PIFSC/CRED
Address: 1845 WASP Blvd., Building 176
City: Honolulu
State_or_Province: HI
Postal_Code: 96818
Contact_Voice_Telephone: 808 725-5360
Contact_Facsimile_Telephone: 808 725-5429
Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
Contact_Instructions: e-mail preferred
Metadata_Standard_Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata_Standard_Version: FGDC-STD-001-1998
Metadata_Time_Convention: Universal Time
Metadata_Access_Constraints: None
Metadata_Use_Constraints: None

CoRIS:
CoRIS_ID: 20101202024541
CoRIS_Children: None
CoRIS_Beginning_Date: 20080329
CoRIS_Ending_Date: 20080504
CoRIS_Metadata_Link:
<http://www.coris.noaa.gov/metadata/records/html/apra_rug_1m.html>
CoRIS_Tracking_ID: 6063
