Slope grid derived from gridded bathymetry of Apra Harbor, Guam U.S. Territory
Metadata also available as [Questions & Answers] - [Parseable text] - [XML]
Metadata:
- Identification_Information:
-
- Citation:
-
- Citation_Information:
-
- Originator:
-
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
- Publication_Date: 20100901
- Title:
-
Slope grid derived from gridded bathymetry of Apra Harbor, Guam U.S. Territory
- Geospatial_Data_Presentation_Form: raster digital data
- Online_Linkage: http://www.soest.hawaii.edu/pibhmc
- Online_Linkage:
-
http://www.soest.hawaii.edu/pibhmc/pibhmc_cnmi_apra_geomorph.htm
- Description:
-
- Abstract:
-
Slope is derived from gridded (1 m cell size) multibeam
bathymetry, collected aboard the Survey Vessel Swamp Fox. Cell
values reflect the maximum rate of change (in degrees) in elevation
between neighboring cells derived with the ArcGIS Spatial Analyst
extension.
- Purpose:
-
The data were derived in support of NOAA Coral Reef Conservation
Program goals. Goal 1 is to map all U.S. Coral Reef Ecosystems.
This data set specifically addresses Objective 1 and 4: to develop
high-resolution benthic maps and to characterize priority deep
water reefs and associated habitats. This derivative of bathymetry
provides a GIS layer that may be used for benthic and essential fish
habitat characterization, and for the study of geologic features.
By combining the dataset with bathymetry, backscatter, other
derivatives, and in situ data, they collectively compose benthic
habitat maps which are designed to be used to understand and predict
moderate depth (~20m to 150m) benthic habitats for different
coral reef organisms.
- Supplemental_Information:
-
Survey data were acquired by the United States Navy (USN) Fleet
Survey Team (FST) with Survey Vessel Swamp Fox. A Reson 8125
multibeam echosounder was mounted from an arm on the port
side of the vessel. The Klein 3000 Side Scan Sonar is operated
in the stern-towed configuration. Additional detailed
information on data acquisition, equipment configuration, and
corrections can be found in the Data Acquisition and Processing
Report (DAPR) that can be accessed at: www.soest.hawaii.edu/pibhmc
and is included in the ZIP file containing the bathymetry grids.
- Time_Period_of_Content:
-
- Time_Period_Information:
-
- Range_of_Dates/Times:
-
- Beginning_Date: 20080329
- Ending_Date: 20080504
- Currentness_Reference: ground condition
- Status:
-
- Progress: Complete
- Maintenance_and_Update_Frequency: As needed
- Spatial_Domain:
-
- Bounding_Coordinates:
-
- West_Bounding_Coordinate: 144.614
- East_Bounding_Coordinate: 144.676
- North_Bounding_Coordinate: 13.464
- South_Bounding_Coordinate: 13.418
- Keywords:
-
- Theme:
-
- Theme_Keyword_Thesaurus: NCEI Geoportal Filter
- Theme_Keyword: CoRIS_Metadata
- Theme:
-
- Theme_Keyword_Thesaurus: CRCP Project
- Theme_Keyword:
-
Benthic Habitat Mapping and Characterization - Commonwealth of the Northern Mariana Islands and Guam
- Theme_Keyword: 1398
- Theme:
-
- Theme_Keyword_Thesaurus: CoRIS Theme Thesaurus
- Theme_Keyword: EARTH SCIENCE > Oceans > Bathymetry/Seafloor Topography > Slope
- Theme_Keyword:
-
EARTH SCIENCE > Oceans > Bathymetry/Seafloor Topography > Bathymetry
- Theme:
-
- Theme_Keyword_Thesaurus: None
- Theme_Keyword: Multibeam sonar
- Theme:
-
- Theme_Keyword_Thesaurus: CoRIS Discovery Thesaurus
- Theme_Keyword: Geographic Information > Habitats
- Theme:
-
- Theme_Keyword_Thesaurus: ISO 19115 Topic Category
- Theme_Keyword: imageryBaseMapsEarthCover
- Theme_Keyword: 010
- Place:
-
- Place_Keyword_Thesaurus: None
- Place_Keyword: UTM Zone 55
- Place_Keyword: Apra Harbor
- Place_Keyword: Guam Island
- Place_Keyword: U.S. Territory
- Place_Keyword: United States of America
- Place:
-
- Place_Keyword_Thesaurus: CoRIS Place Thesaurus
- Place_Keyword:
-
OCEAN BASIN > Pacific Ocean > Western Pacific Ocean > Guam > Apra Harbour (13N144E0051)
- Place_Keyword:
-
COUNTRY/TERRITORY > United States of America > Guam > Apra Harbour (13N144E0051)
- Place:
-
- Place_Keyword_Thesaurus: CoRIS Region
- Place_Keyword: Guam
- Access_Constraints: None
- Use_Constraints:
-
These data are not to be used for navigation purposes.
Please acknowledge the NOAA Pacific Islands Fisheries Science Center
(PIFSC) Coral Reef Ecosystem Division (CRED) and the Pacific Islands
Benthic Habitat Mapping Center, and the Joint Institute for Marine
and Atmospheric Research (JIMAR) and School of Ocean and Earth
Science and Technology (SOEST), University of Hawaii, the NOAA
Office of Coast Survey, and the USN Fleet Survey Team as the sources
of this information.
- Point_of_Contact:
-
- Contact_Information:
-
- Contact_Organization_Primary:
-
- Contact_Organization:
-
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
- Contact_Address:
-
- Address_Type: mailing and physical address
- Address: NOAA IRC
- Address: NMFS/PIFSC/CRED
- Address: 1845 WASP Blvd., Building 176
- City: Honolulu
- State_or_Province: HI
- Postal_Code: 96818
- Contact_Voice_Telephone: 808 725-5360
- Contact_Facsimile_Telephone: 808 725-5429
- Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
- Contact_Instructions: e-mail preferred

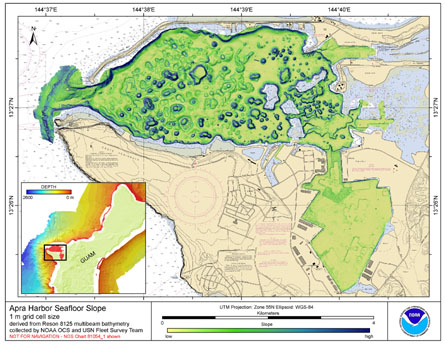

- Browse_Graphic:
-
- Browse_Graphic_File_Name:
-
http://www.soest.hawaii.edu/pibhmc/CNMI_images/apra_slp_1m_445.jpg
- Browse_Graphic_File_Description: Gridded Bathymetry
- Browse_Graphic_File_Type: JPG
- Data_Set_Credit:
-
NOAA PIFSC CRED and the Pacific Islands Benthic Habitat
Mapping Center, JIMAR and SOEST
- Security_Information:
-
- Security_Classification_System: Not applicable
- Security_Classification: Unclassified
- Security_Handling_Description: Not applicable
- Data_Quality_Information:
-
- Attribute_Accuracy:
-
- Attribute_Accuracy_Report:
-
Data are collected for resource
management and research purposes and are tested for
internal consistency; however, no effort is made to compare
these data to external references or to other published data.
- Logical_Consistency_Report:
-
These data are believed to be logically
consistent though no tests were performed
- Completeness_Report: Complete
- Positional_Accuracy:
-
- Horizontal_Positional_Accuracy:
-
- Horizontal_Positional_Accuracy_Report:
-
Horizontal positioning system: see DAPR
Horizontal position accuracy: see DAPR
- Vertical_Positional_Accuracy:
-
- Vertical_Positional_Accuracy_Report:
-
Range resolution of sonar: see DAPR
Raw sounding resolution: see DAPR
- Lineage:
-
- Process_Step:
-
- Process_Description:
-
The Spatial Analyst extension was used in ArcMap 9.x to derive
slope from the gridded (1m) bathymetry.
Spatial Analyst --> Surface Analysis --> Slope
using the following parameters:
Input surface: apra_bty_1m; Output measurement: Degree; Z factor: 1; Output cell size: 1
- Process_Date: 20100810
- Spatial_Data_Organization_Information:
-
- Direct_Spatial_Reference_Method: Raster
- Raster_Object_Information:
-
- Raster_Object_Type: Grid Cell
- Row_Count: 5061
- Column_Count: 6664
- Vertical_Count: 1
- Spatial_Reference_Information:
-
- Horizontal_Coordinate_System_Definition:
-
- Planar:
-
- Grid_Coordinate_System:
-
- Grid_Coordinate_System_Name: Universal Transverse Mercator
- Universal_Transverse_Mercator:
-
- UTM_Zone_Number: 55
- Transverse_Mercator:
-
- Scale_Factor_at_Central_Meridian: 0.9996
- Longitude_of_Central_Meridian: 147
- Latitude_of_Projection_Origin: 0
- False_Easting: 500000
- False_Northing: 0
- Planar_Coordinate_Information:
-
- Planar_Coordinate_Encoding_Method: Row and Column
- Coordinate_Representation:
-
- Abscissa_Resolution: 1
- Ordinate_Resolution: 1
- Planar_Distance_Units: meters
- Geodetic_Model:
-
- Horizontal_Datum_Name: D_WGS_1984
- Ellipsoid_Name: WGS_1984
- Semi-major_Axis: 6378137.000000
- Denominator_of_Flattening_Ratio: 298.257224
- Entity_and_Attribute_Information:
-
- Overview_Description:
-
- Entity_and_Attribute_Overview: none
- Entity_and_Attribute_Detail_Citation: none
- Distribution_Information:
-
- Distributor:
-
- Contact_Information:
-
- Contact_Organization_Primary:
-
- Contact_Organization:
-
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
- Contact_Address:
-
- Address_Type: mailing and physical address
- Address: NOAA IRC
- Address: NMFS/PIFSC/CRED
- Address: 1845 WASP Blvd., Building 176
- City: Honolulu
- State_or_Province: HI
- Postal_Code: 96818
- Contact_Voice_Telephone: 808 725-5360
- Contact_Facsimile_Telephone: 808 725-5429
- Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
- Contact_Instructions: e-mail preferred
- Resource_Description: Downloadable Data
- Distribution_Liability:
-
These data are not to be used for navigational purposes.
NOAA makes no warranty regarding these data, expressed or implied,
nor does the fact of distribution constitute such a warranty.
NOAA cannot assume liability for any damages caused by any errors
or omissions in these data, nor as a result of the failure of
these data to function on a particular system.
- Standard_Order_Process:
-
- Digital_Form:
-
- Digital_Transfer_Information:
-
- Format_Name: Arc ASCII
- Format_Information_Content:
-
Arc ASCII can be converted to Arc Raster
using ArcToolbox Conversion Tools (ASCIItoRaster).
- Digital_Transfer_Option:
-
- Online_Option:
-
- Computer_Contact_Information:
-
- Network_Address:
-
- Network_Resource_Name:
-
ftp://ftp.soest.hawaii.edu/pibhmc/website/data/cnmi-guam/benthichabitatlayers/apra_slp_1m.zip
- Fees: None
- Metadata_Reference_Information:
-
- Metadata_Date: 20200329
- Metadata_Review_Date: 20101202
- Metadata_Contact:
-
- Contact_Information:
-
- Contact_Organization_Primary:
-
- Contact_Organization:
-
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
- Contact_Address:
-
- Address_Type: mailing and physical address
- Address: NOAA IRC
- Address: NMFS/PIFSC/CRED
- Address: 1845 WASP Blvd., Building 176
- City: Honolulu
- State_or_Province: HI
- Postal_Code: 96818
- Contact_Voice_Telephone: 808 725-5360
- Contact_Facsimile_Telephone: 808 725-5429
- Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
- Contact_Instructions: e-mail preferred
- Metadata_Standard_Name: FGDC Content Standards for Digital Geospatial Metadata
- Metadata_Standard_Version: FGDC-STD-001-1998
- Metadata_Time_Convention: Universal Time
- Metadata_Access_Constraints: None
- Metadata_Use_Constraints: None
- CoRIS:
-
- CoRIS_ID: 20101202024744
- CoRIS_Children: None
- CoRIS_Beginning_Date: 20080329
- CoRIS_Ending_Date: 20080504
- CoRIS_Metadata_Link:
-
https://www.coris.noaa.gov/metadata/records/html/apra_slp_1m.html
- CoRIS_Tracking_ID: 6064
