CRED 10m Gridded multibeam bathymetry of Maug Island(s), Commonwealth of the Northern Mariana Islands (CNMI).

Metadata also available as [Questions & Answers] - [Parseable text] - [XML]

Metadata:


Identification_Information:
Citation:
Citation_Information:
Originator:
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
Publication_Date: 20071130
Title:
CRED 10m Gridded multibeam bathymetry of Maug Island(s), Commonwealth of the Northern Mariana Islands (CNMI).
Geospatial_Data_Presentation_Form: digital data
Online_Linkage: <http://www.soest.hawaii.edu/pibhmc/pibhmc_cnmi.htm>
Description:
Abstract:
Gridded bathymetry shelf, bank and slope environments of Maug Island(s), CNMI. Bottom coverage was achieved in depths between 4 and 3275 meters. This 10-m grid also contains data to only 800 meter depth. The netCDF and Arc ASCII grids include multibeam bathymetry from the Simrad EM300 and Reson 8101 multibeam sonars collected as of June 2007 by the NOAA Coral Reef Ecosystem Division. The sonar frequencies are 30 and 240 kHz respectively.
Purpose:
These netCDF and ASCII grids were created using data gathered from multibeam soundings for use as a planning and reference document. The data are also being used for benthic habitat mapping, for locating Essential Fish Habitat, and for studying geologic features of the area. Refer to supplemental information for description of instrument and survey.
Supplemental_Information:
Multibeam data were collected aboard the NOAA Ship Hi'ialakai, a 218' United Dtates National Oceanographic and Atmospheric Administration research ship. The NOAA Ship Hi'ialakai's survey sensors include a 30 kHz Simrad EM300 sonar and a 300 kHz Simrad EM3002d sonar, which provide bathymetry and imagery data, a TSS/Applanix POS/MV Model 320, which measures position, velocity, attitude and heading, and a Seabird SBE 9/11 plus CTD used to measure sound velocity profiles.

Multibeam data were also collected aboard the R/V AHI (Acoustic Habitat Investigator), a 25' survey launch owned and operated by the NOAA Pacific Islands Fisheries Science Center in Honolulu, HI. The R/V AHI's survey sensors include a 240 kHz RESON 8101-ER sonar providing bathymetry and imagery data, a TSS/Applanix POS/MV Model 320 which measures position, velocity, attitude and heading, and a Seabird SBE 19 CTD used to measure sound velocity profiles.

Specific equipment configurations are documented in metadata from cruises AHI0703 and HI0703. These metadata can be accessed at: <http://www.soest.hawaii.edu/pibhmc/pibhmc_cruise-catalog.htm>

Time_Period_of_Content:
Time_Period_Information:
Range_of_Dates/Times:
Beginning_Date: 20070525
Ending_Date: 20070608
Currentness_Reference: ground condition
Status:
Progress: Complete
Maintenance_and_Update_Frequency: As needed
Spatial_Domain:
Bounding_Coordinates:
West_Bounding_Coordinate: 145.183
East_Bounding_Coordinate: 145.267
North_Bounding_Coordinate: 20.07
South_Bounding_Coordinate: 19.99
Keywords:
Theme:
Theme_Keyword_Thesaurus: CoRIS Discovery Thesaurus
Theme_Keyword: Geographic Information > Bathymetry
Theme:
Theme_Keyword_Thesaurus: ISO 19115 Topic Category
Theme_Keyword: elevation
Theme_Keyword: 006
Theme:
Theme_Keyword_Thesaurus: CoRIS Theme Thesaurus
Theme_Keyword:
EARTH SCIENCE > Oceans > Bathymetry/Seafloor Topography > Bathymetry
Theme:
Theme_Keyword_Thesaurus: None
Theme_Keyword: Bathymetry
Theme_Keyword: Multibeam sonar
Place:
Place_Keyword_Thesaurus: None
Place_Keyword: Maug Island(s)
Place_Keyword: Commonwealth of the Northern Mariana Islands
Place_Keyword: United States of America
Place:
Place_Keyword_Thesaurus: CoRIS Place Thesaurus
Place_Keyword:
COUNTRY/TERRITORY > Northern Mariana Islands > Maug > Maug Island (20N145E0001)
Place_Keyword:
OCEAN BASIN > Pacific Ocean > Western Pacific Ocean > Maug Island > Maug Island (20N145E0001)
Place:
Place_Keyword_Thesaurus: CoRIS Region
Place_Keyword: CNMI
Access_Constraints: none
Use_Constraints:
These data are not to be used for navigation purposes. Please acknowledge NOAA Pacific Islands Fisheries Science Center, and the Joint Institute for Marine and Atmospheric Research (JIMAR) University of Hawaii as the sources of this information.
Point_of_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization:
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
Contact_Address:
Address_Type: mailing and physical address
Address: NOAA IRC
Address: NMFS/PIFSC/CRED
Address: 1845 WASP Blvd., Building 176
City: Honolulu
State_or_Province: HI
Postal_Code: 96818
Contact_Voice_Telephone: 808 725-5360
Contact_Facsimile_Telephone: 808 725-5429
Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
Contact_Instructions: e-mail preferred
Browse_Graphic:

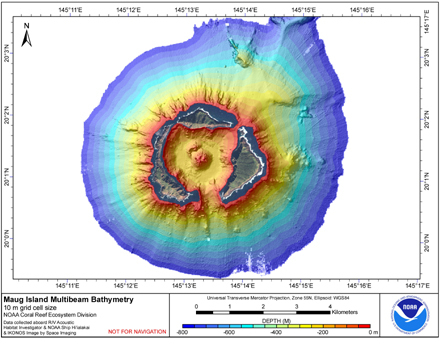

Browse_Graphic_File_Name: <http://www.soest.hawaii.edu/pibhmc/CNMI_images/maug_10m_440.jpg>
Browse_Graphic_File_Description: Multibeam Bathymetry
Browse_Graphic_File_Type: JPEG
Data_Set_Credit: PIBHMC, CRED, PIFSC, NOAA, and JIMAR
Security_Information:
Security_Classification_System: Not applicable
Security_Classification: Unclassified
Security_Handling_Description: Not applicable
Native_Data_Set_Environment:
netCDF file created using the Generic Mapping Tools (GMT) and ArcGIS ASCII file, both created in a LINUX environment

Data_Quality_Information:
Attribute_Accuracy:
Attribute_Accuracy_Report:
Data are collected for resource management and research purposes and are tested for internal consistency; however, no effort is made to compare these data to external references or to other published data.
Logical_Consistency_Report:
These data are believed to be logically consistent though no tests were performed
Completeness_Report: Complete
Positional_Accuracy:
Horizontal_Positional_Accuracy:
Horizontal_Positional_Accuracy_Report:
Horizontal positioning system: GPS (SPS) Horizontal position accuracy: 25 m
Vertical_Positional_Accuracy:
Vertical_Positional_Accuracy_Report:
1 m Raw sounding resolution: Variable
Lineage:
Process_Step:
Process_Description:
Multibeam swath files are acquired on and around each island and bank in the Generic Sensor Format (GSF) and are edited on a swath by swath basis using SAIC's SABER editing software. The edited swath files are then combined into a Pure File Magic (PFM) format with a defined grid cell size (10 m) in SABER and area based editing is performed. The edited PFM is then exported as X,Y,Z data with a value at each grid node. The X,Y,Z data are then and gridded using nearneighbor, a Generic Mapping Tools (GMT) algorithm that converts an ASCII or binary table to a netCDF grid file format. NetCDF grids are then converted to an ArcGIS ASCII file format using LINUX/UNIX commands in combination with GMT. GMT is an open source collection of tools for manipulating geographic data sets. Additional information about GMT can be found at: <http://www.soest.hawaii.edu/gmt> and additional information about the multibeam data processing is recorded in the cruise metadata.
Process_Date: 20071026

Spatial_Data_Organization_Information:
Direct_Spatial_Reference_Method: Raster
Raster_Object_Information:
Raster_Object_Type: Grid Cell
Row_Count: 869
Column_Count: 803
Vertical_Count: 1

Spatial_Reference_Information:
Horizontal_Coordinate_System_Definition:
Planar:
Grid_Coordinate_System:
Grid_Coordinate_System_Name: Universal Transverse Mercator
Universal_Transverse_Mercator:
UTM_Zone_Number: 55
Transverse_Mercator:
Scale_Factor_at_Central_Meridian: 0.9996
Longitude_of_Central_Meridian: 147
Latitude_of_Projection_Origin: 0
False_Easting: 500000
False_Northing: 0
Planar_Coordinate_Information:
Planar_Coordinate_Encoding_Method: Row and Column
Coordinate_Representation:
Abscissa_Resolution: 10
Ordinate_Resolution: 10
Planar_Distance_Units: meters
Geodetic_Model:
Horizontal_Datum_Name: D_WGS_1984
Ellipsoid_Name: WGS_1984
Semi-major_Axis: 6378137.000000
Denominator_of_Flattening_Ratio: 298.257224
Vertical_Coordinate_System_Definition:
Depth_System_Definition:
Depth_Datum_Name: mean lower low water
Depth_Resolution: 0.01
Depth_Distance_Units: meters
Depth_Encoding_Method: Attribute Values

Entity_and_Attribute_Information:
Overview_Description:
Entity_and_Attribute_Overview:
Depth values are real values based on the average of the soundings that fell within the extracted grid cells. The number of soundings per grid cell range from >1000 soundings in shallow depths to as few as 20 soundings in deeper areas. A total error budget for these data have not been developed. Therefore, the accuracy of depth measurements should be considered to be within 1 meter.
Entity_and_Attribute_Detail_Citation: none

Distribution_Information:
Distributor:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization:
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
Contact_Address:
Address_Type: mailing and physical address
Address: NOAA IRC
Address: NMFS/PIFSC/CRED
Address: 1845 WASP Blvd., Building 176
City: Honolulu
State_or_Province: HI
Postal_Code: 96818
Contact_Voice_Telephone: 808 725-5360
Contact_Facsimile_Telephone: 808 725-5429
Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
Contact_Instructions: e-mail preferred
Resource_Description: Downloadable Data
Distribution_Liability:
These data are not to be used for navigational purposes. NOAA makes no warranty regarding these data, expressed or implied, nor does the fact of distribution constitute such a warranty. NOAA cannot assume liability for any damages caused by any errors or omissions in these data, nor as a result of the failure of these data to function on a particular system.
Standard_Order_Process:
Digital_Form:
Digital_Transfer_Information:
Format_Name: netCDF and Arc ASCII
Format_Information_Content:
These data can be downloaded as either a 2-D binary netCDF raster grid or an ArcGIS ASCII text file. The netCDF grid is the default grid file format used by GMT (Generic Mapping Tools), which created this file. More information can be located at <http://www.soest.hawaii.edu/gmt/and> <http://www.unidata.ucar.edu/software/netcdf/>. The Arc ASCII file, for use in ESRI's (<http://www.esri.com>) GIS software, can be converted to an Arc Raster Grid using ArcToolbox ASCII to Raster conversion tool.
Digital_Transfer_Option:
Online_Option:
Computer_Contact_Information:
Network_Address:
Network_Resource_Name:
<ftp://ftp.soest.hawaii.edu/pibhmc/website/data/cnmi-guam/bathymetry/maug_10m.grd.zip>
Network_Resource_Name:
<ftp://ftp.soest.hawaii.edu/pibhmc/website/data/cnmi-guam/bathymetry/maug_10m.asc.zip>
Fees: None

Metadata_Reference_Information:
Metadata_Date: 20140312
Metadata_Review_Date: 20090217
Metadata_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization:
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
Contact_Address:
Address_Type: mailing and physical address
Address: NOAA IRC
Address: NMFS/PIFSC/CRED
Address: 1845 WASP Blvd., Building 176
City: Honolulu
State_or_Province: HI
Postal_Code: 96818
Contact_Voice_Telephone: 808 725-5360
Contact_Facsimile_Telephone: 808 725-5429
Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
Contact_Instructions: e-mail preferred
Metadata_Standard_Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata_Standard_Version: FGDC-STD-001-1998
Metadata_Time_Convention: Universal Time
Metadata_Access_Constraints: None
Metadata_Use_Constraints: None

CoRIS:
CoRIS_ID: 20090217081409
CoRIS_Children: None
CoRIS_Beginning_Date: 20070525
CoRIS_Ending_Date: 20070608
CoRIS_Metadata_Link:
<http://www.coris.noaa.gov/metadata/records/html/cred_gridded_bathy_maug_10m.html>
CoRIS_Tracking_ID: 2631
