Gridded bathymetry of Kahoolawe Island, Hawaii, USA

Identification_Information:

Citation:

Citation_Information:

Originator:

Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)

Publication_Date: 20131022
Title: Gridded bathymetry of Kahoolawe Island, Hawaii, USA
Geospatial_Data_Presentation_Form: digital data
Online_Linkage: http://www.soest.hawaii.edu/pibhmc/pibhmc_mhi_kal_bathy.htm
Online_Linkage: http://www.soest.hawaii.edu/pibhmc

Description:

Abstract:

Gridded bathymetry (10m) of Kahoolawe Island, Hawaii, USA. The data include multibeam bathymetry from the EM120, EM122, EM710, EM1020, and EM1002 multibeam sonar collected by the Hawai'i Undersea Research Laboratory of the University of Hawaii in depths between -30 and -1300 meters. Data processing was done for distribution by the NOAA Coral Reef Ecosystem Division.

Purpose:

These ASCII grids were created using data gathered from multibeam soundings for documentation and for use as a planning and reference document. Further data were collected to fill gaps in the existing bathymetry. Refer to supplemental information for description of instrument and survey.

Supplemental_Information:

Data were collected aboard the R/V Kilo Moana, a 186' Waterplane Area Twin Hull (SWATH) vessel owned by the U.S. Navy and operated by the University of Hawaii Marine Center. The R/V Kilo Moana's survey sensors include a Simrad EM710: 70-100 kHz swath mapping, 10-1800 m depth range Multibeam and a Simrad EM122: 12 kHz swath mapping, 300-11,000 m depth range which measure bathymetry and acoustic backscatter imagery, a TSS/POS/MV 320 Model which measures time, position, velocity, attitude and heading, and a Seabird SBE 19plus CTD used to measure sound velocity profiles. Specific equipment configurations are documented: http://www.soest.hawaii.edu/UMC/cms/kilo-moana/ http://www.rvdata.us/catalog/Kilo_Moana http://www.soest.hawaii.edu/UMC/cms/sensor-calibration-records/

Time_Period_of_Content:

Time_Period_Information:

Range_of_Dates/Times:

Beginning_Date: 20031019
Ending_Date: 20110902

Currentness_Reference: ground condition

Status:

Progress: Complete
Maintenance_and_Update_Frequency: As needed

Spatial_Domain:

Bounding_Coordinates:

West_Bounding_Coordinate: -156.898002
East_Bounding_Coordinate: -156.450646
North_Bounding_Coordinate: 20.631343
South_Bounding_Coordinate: 20.361315

Keywords:

Theme:

Theme_Keyword_Thesaurus: NCEI Geoportal Filter
Theme_Keyword: CoRIS_Metadata

Theme:

Theme_Keyword_Thesaurus: CRCP Project
Theme_Keyword:

Benthic Habitat Mapping and Characterization in the Pacific Islands Region

Theme_Keyword: 467

Theme:

Theme_Keyword_Thesaurus: CoRIS Theme Thesaurus
Theme_Keyword:

EARTH SCIENCE > Oceans > Bathymetry/Seafloor Topography > Bathymetry

Theme:

Theme_Keyword_Thesaurus: ISO 19115 Topic Category
Theme_Keyword: elevation
Theme_Keyword: 006

Theme:

Theme_Keyword_Thesaurus: CoRIS Discovery Thesaurus
Theme_Keyword: Geographic Information > Bathymetry

Theme:

Theme_Keyword_Thesaurus: None
Theme_Keyword: Bathymetry
Theme_Keyword: Multibeam sonar

Place:

Place_Keyword_Thesaurus: None
Place_Keyword: Hawaiian Islands
Place_Keyword: Kahoolawe

Place:

Place_Keyword_Thesaurus: CoRIS Place Thesaurus
Place_Keyword:

OCEAN BASIN > Pacific Ocean > Central Pacific Ocean > Hawaiian Islands > Kahoolawe Island > Kahoolawe Island (20N156W0001)

Place_Keyword:

COUNTRY/TERRITORY > United States of America > Hawaii > Kalawao > Kahoolawe Island (20N156W0001)

Access_Constraints: None
Use_Constraints:

These data are not to be used for navigation purposes. Please acknowledge the NOAA Pacific Islands Fisheries Science Center (PIFSC) Coral Reef Ecosystem Division (CRED) and the Pacific Islands Benthic Habitat Mapping Center (PIBHMC), and the Joint Institute for Marine and Atmospheric Research (JIMAR) and School of Ocean and Earth Science and Technology (SOEST), University of Hawaii as the sources of this information.

Point_of_Contact:

Contact_Information:

Contact_Organization_Primary:

Contact_Organization:

Contact_Address:

Address_Type: mailing and physical
Address: NOAA IRC
Address: NMFS/PIFSC/CRED
Address: 1845 WASP Blvd., Building 176
City: Honolulu
State_or_Province: HI
Postal_Code: 96818
Country: USA

Contact_Voice_Telephone: 808 725-5360
Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
Contact_Instructions: e-mail preferred

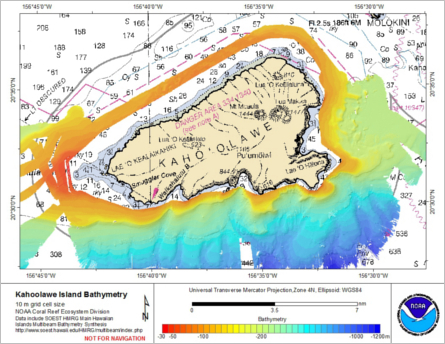

Browse_Graphic:

Browse_Graphic_File_Name:

https://www.soest.hawaii.edu/pibhmc/MHI_images/kal_bathy_10m_445.jpg

Browse_Graphic_File_Description: Multibeam Bathymetry
Browse_Graphic_File_Type: JPEG

Data_Set_Credit: HURL,PIBHMC, CRED, PIFSC, NOAA and JIMAR
Security_Information:

Security_Classification_System: Not applicable
Security_Classification: Unclassified
Security_Handling_Description: Not applicable

Native_Data_Set_Environment:

netCDF file created using the Generic Mapping Tools (GMT) and ArcGIS ASCII file, both created in a LINUX environment

Data_Quality_Information:

Attribute_Accuracy:

Attribute_Accuracy_Report:

Data are collected for resource management and research purposes and are tested for internal consistency; however, no effort is made to compare these data to external references or to other published data.

Logical_Consistency_Report:

These data are believed to be logically consistent though no tests were performed

Completeness_Report: Complete
Positional_Accuracy:

Horizontal_Positional_Accuracy:

Horizontal_Positional_Accuracy_Report:

Horizontal positioning system: GPS (SPS) Horizontal position accuracy: 25 m

Vertical_Positional_Accuracy:

Vertical_Positional_Accuracy_Report:

1 m Raw sounding resolution: Variable

Lineage:

Process_Step:

Process_Description:

Multibeam swath files are acquired in the Generic Sensor Format (GSF) and are edited on a swath by swath basis using SAIC's SABER editing software. The edited swath files are then combined into a Pure File Magic (PFM) format with a defined grid cell size (10 m) in SABER and area based editing is performed. The edited PFM is then exported as X,Y,Z data with a value at each grid node. The X,Y,Z data are then gridded using nearneighbor, a Generic Mapping Tools (GMT) algorithm that converts an ASCII or binary table to a netCDF grid file format. NetCDF grids are then converted to an ArcGIS ASCII file format using LINUX/UNIX commands in combination with GMT. GMT is an open source collection of tools for manipulating geographic data sets. Additional information about GMT can be found at: http://www.soest.hawaii.edu/gmt and additional information about the multibeam data processing is recorded in the cruise metadata.

Process_Date: 20111001

Spatial_Data_Organization_Information:

Direct_Spatial_Reference_Method: Raster
Raster_Object_Information:

Raster_Object_Type: Grid Cell
Row_Count: 2925
Column_Count: 4627
Vertical_Count: 1

Spatial_Reference_Information:

Horizontal_Coordinate_System_Definition:

Planar:

Grid_Coordinate_System:

Grid_Coordinate_System_Name: Universal Transverse Mercator
Universal_Transverse_Mercator:

UTM_Zone_Number: 4
Transverse_Mercator:

Scale_Factor_at_Central_Meridian: .9996
Longitude_of_Central_Meridian: -165
Latitude_of_Projection_Origin: 0
False_Easting: 500000
False_Northing: 0

Planar_Coordinate_Information:

Planar_Coordinate_Encoding_Method: row and column
Coordinate_Representation:

Abscissa_Resolution: 10
Ordinate_Resolution: 10

Planar_Distance_Units: meters

Geodetic_Model:

Horizontal_Datum_Name: D_WGS_1984
Ellipsoid_Name: WGS_1984
Semi-major_Axis: 6378137.000000
Denominator_of_Flattening_Ratio: 298.257224

Vertical_Coordinate_System_Definition:

Depth_System_Definition:

Depth_Datum_Name: mean lower low water
Depth_Resolution: 0.01
Depth_Distance_Units: meters
Depth_Encoding_Method: Attribute values

Entity_and_Attribute_Information:

Overview_Description:

Entity_and_Attribute_Overview:

Depth values are real values based on the average of the soundings that fell within the extracted grid cells. The number of soundings per grid cell range from >1000 soundings in shallow depths to as few as 20 soundings in deeper areas. A total error budget for this survey has not been developed. Therefore, the accuracy of depth measurements should be considered to be within 1 meter.

Entity_and_Attribute_Detail_Citation: none

Distribution_Information:

Distributor:

Contact_Information:

Contact_Organization_Primary:

Contact_Organization:

Contact_Address:

Address_Type: mailing and physical
Address: NOAA IRC
Address: NMFS/PIFSC/CRED
Address: 1845 WASP Blvd., Building 176
City: Honolulu
State_or_Province: HI
Postal_Code: 96818
Country: USA

Contact_Voice_Telephone: 808 725-5360
Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
Contact_Instructions: e-mail preferred

Resource_Description: Downloadable Data
Distribution_Liability:

These data are not to be used for navigational purposes. NOAA makes no warranty regarding these data, expressed or implied, nor does the fact of distribution constitute such a warranty. NOAA cannot assume liability for any damages caused by any errors or omissions in these data, nor as a result of the failure of these data to function on a particular system.

Standard_Order_Process:

Digital_Form:

Digital_Transfer_Information:

Format_Name: Arc ASCII
Format_Information_Content:

The Arc ASCII file, for use in ESRI's (http://www.esri.com) GIS software, can be converted to an Arc Raster Grid using ArcToolbox ASCII to Raster conversion tool.

Digital_Transfer_Option:

Online_Option:

Computer_Contact_Information:

Network_Address:

Network_Resource_Name:

ftp://ftp.soest.hawaii.edu/pibhmc/website/data/mhi/bathymetry/kal_bathy_10m.zip

Fees: None

Gridded bathymetry of Kahoolawe Island, Hawaii, USA
