Gridded bathymetry of Kaneohe Bay, Windward Side Oahu, Main Hawaiian Islands, USA.
Metadata also available as [Questions & Answers] - [Parseable text] - [XML]
Metadata:
- Identification_Information:
-
- Citation:
-
- Citation_Information:
-
- Originator:
-
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
- Publication_Date: 20111030
- Title:
-
Gridded bathymetry of Kaneohe Bay, Windward Side Oahu, Main Hawaiian Islands, USA.
- Geospatial_Data_Presentation_Form: digital data
- Online_Linkage:
-
http://www.soest.hawaii.edu/pibhmc/cms/data-by-location/main-hawaiian-islands/oahu/bathymetry/
- Online_Linkage: http://www.soest.hawaii.edu/pibhmc
- Description:
-
- Abstract:
-
4-m grid of bathymetric data of Kaneohe Bay, Windward Side Oahu, Main Hawaiian Islands, USA.
These netCDF and ASCII grids include multibeam bathymetry from the Reson 8101 multibeam sonar collected by the
National Oceanic and Atmospheric Administration (NOAA) survey launch Acoustic Habitat Investigator (AHI) in 2009
and 2010 in Kaneohe Bay, Oahu by the NOAA Coral Reef Ecosystem Division in depths between 5 and 50 meters.
The 4-m grid also contains bathymetric Light Detecting and Ranging (LiDAR) data collected by the US Army Corps
of Engineers (ACOE) in 2000 and 2007.
- Purpose:
-
These netCDF and ASCII grids were created using data gathered from
multibeam and LiDAR depth measurements for use as a planning and reference document. The data
are also being used for benthic habitat mapping, for locating Essential Fish
Habitat, and for studying geologic features of the area. Refer to supplemental information for description of instrument and survey.
- Supplemental_Information:
-
Multibeam data were collected aboard the R/V AHI (Acoustic Habitat Investigator),
a 25' survey launch owned and operated by the NOAA Pacific Islands Fisheries Science
Center in Honolulu, HI. The R/V AHI's survey sensors include a 240 kHz RESON 8101-ER
sonar providing bathymetry and imagery data, a TSS/Applanix POS/MV Model 320 which
measures position, velocity, attitude and heading, and a Seabird SBE 19 CTD used to
measure sound velocity profiles. These metadata can be accessed at:
http://www.soest.hawaii.edu/pibhmc/cms/cruise-catalog/
The 4m gridded bathymetric LiDAR data were collected by the ACOE and metadata for these can be found at
http://shoals.sam.usace.army.mil/hawaii/pages/Oahu.htm and at
ftp://ftp.soest.hawaii.edu/pibhmc/website/data/mhi/bathymetry/2007_HI_KaneoheBay_H_ASC.txt.xml
- Time_Period_of_Content:
-
- Time_Period_Information:
-
- Range_of_Dates/Times:
-
- Beginning_Date: 20000101
- Ending_Date: 20101010
- Currentness_Reference: ground condition
- Status:
-
- Progress: Complete
- Maintenance_and_Update_Frequency: As needed
- Spatial_Domain:
-
- Bounding_Coordinates:
-
- West_Bounding_Coordinate: -157.53
- East_Bounding_Coordinate: -157.50
- North_Bounding_Coordinate: 21.41
- South_Bounding_Coordinate: 21.20
- Keywords:
-
- Theme:
-
- Theme_Keyword_Thesaurus: NCEI Geoportal Filter
- Theme_Keyword: CoRIS_Metadata
- Theme:
-
- Theme_Keyword_Thesaurus: CRCP Project
- Theme_Keyword:
-
Benthic Habitat Mapping and Characterization in the Pacific Islands Region
- Theme_Keyword: 467
- Theme:
-
- Theme_Keyword_Thesaurus: CoRIS Theme Thesaurus
- Theme_Keyword:
-
EARTH SCIENCE > Oceans > Bathymetry/Seafloor Topography > Bathymetry
- Theme:
-
- Theme_Keyword_Thesaurus: ISO 19115 Topic Category
- Theme_Keyword: elevation
- Theme_Keyword: 006
- Theme:
-
- Theme_Keyword_Thesaurus: CoRIS Discovery Thesaurus
- Theme_Keyword: Geographic Information > Bathymetry
- Theme:
-
- Theme_Keyword_Thesaurus: None
- Theme_Keyword: Bathymetry
- Theme_Keyword: Multibeam sonar
- Place:
-
- Place_Keyword_Thesaurus: None
- Place_Keyword: Hawaiian Islands
- Place_Keyword: Oahu
- Place:
-
- Place_Keyword_Thesaurus: CoRIS Region
- Place_Keyword: MHI
- Place:
-
- Place_Keyword_Thesaurus: CoRIS Place Thesaurus
- Place_Keyword:
-
OCEAN BASIN > Pacific Ocean > Central Pacific Ocean > Hawaiian Islands > Oahu Island > Oahu (21N157W0003)
- Place_Keyword:
-
COUNTRY/TERRITORY > United States of America > Hawaii > Honolulu > Oahu (21N157W0003)
- Access_Constraints: None.
- Use_Constraints:
-
These data are NOT TO BE USED FOR NAVIGATION purposes.
Please acknowledge the PIFSC,the Joint Institute for Marine and Atmospheric
Research(JIMAR), and CRED/PIBHMC as the sources of this information.
- Point_of_Contact:
-
- Contact_Information:
-
- Contact_Organization_Primary:
-
- Contact_Organization:
-
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
- Contact_Address:
-
- Address_Type: mailing and physical address
- Address: NOAA IRC
- Address: NMFS/PIFSC/CRED
- Address: 1845 WASP Blvd., Building 176
- City: Honolulu
- State_or_Province: HI
- Postal_Code: 96818
- Contact_Voice_Telephone: 808 725-5360
- Contact_Facsimile_Telephone: 808 725-5429
- Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
- Contact_Instructions: e-mail preferred

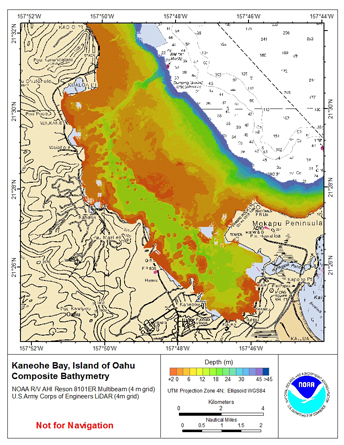

- Browse_Graphic:
-
- Browse_Graphic_File_Name:
-
http://www.soest.hawaii.edu/pibhmc/MHI_images/kaneohe_bathy_4m_445.jpg
- Browse_Graphic_File_Description: Multibeam Bathymetry
- Browse_Graphic_File_Type: JPEG
- Data_Set_Credit: PIBHMC, CRED, PIFSC, NOAA, JIMAR, ACOE
- Security_Information:
-
- Security_Classification_System: Not applicable
- Security_Classification: Unclassified
- Security_Handling_Description: Not applicable
- Native_Data_Set_Environment:
-
netCDF file created using the Generic
Mapping Tools (GMT) and ArcGIS ASCII file, both created in a
LINUX environment
- Data_Quality_Information:
-
- Attribute_Accuracy:
-
- Attribute_Accuracy_Report:
-
Data are collected for resource management
and research purposes and are tested for internal consistency; however,
no effort is made to compare these data to external references or to
other published data.
- Logical_Consistency_Report:
-
These data are believed to be logically consistent
though no tests were performed, with the following exception. 2009 multibeam
data were collected during transits in and out of Kaneohe Bay at varying surveys speeds and
were not compensated for settlement and squat. Thus some depth discrepancies occur between
the 2009 and 2010 data sets, which were not completely resolved during processing.
- Completeness_Report: Complete
- Positional_Accuracy:
-
- Horizontal_Positional_Accuracy:
-
- Horizontal_Positional_Accuracy_Report:
-
Horizontal positioning system: GPS (SPS)
Horizontal position accuracy: 25 m
- Vertical_Positional_Accuracy:
-
- Vertical_Positional_Accuracy_Report:
-
1 m
Raw sounding resolution: Variable
- Lineage:
-
- Process_Step:
-
- Process_Description:
-
Multibeam swath files are acquired in the Generic Sensor Format (GSF) and
are edited on a swath by swath basis using SAIC's SABER editing software.
The edited swath files are then combined into a 2-m Pure File Magic (PFM) format
in SABER and area based editing is performed. The edited PFM 2-m was then exported
as X,Y,Z. The XYZ files were read into Global Mapper, a commercial application,
combined with the 4-m ACOE LiDAR data, and exported as an ArcASCII file and imported
into ArcGIS . aAdditional information about the multibeam data
processing is recorded in the cruise metadata.
- Process_Date: 20111027
- Spatial_Data_Organization_Information:
-
- Direct_Spatial_Reference_Method: Raster
- Raster_Object_Information:
-
- Raster_Object_Type: Grid Cell
- Row_Count: 3853
- Column_Count: 3531
- Vertical_Count: 1
- Spatial_Reference_Information:
-
- Horizontal_Coordinate_System_Definition:
-
- Planar:
-
- Grid_Coordinate_System:
-
- Grid_Coordinate_System_Name: Universal Transverse Mercator
- Universal_Transverse_Mercator:
-
- UTM_Zone_Number: 4
- Transverse_Mercator:
-
- Scale_Factor_at_Central_Meridian: 0.9996
- Longitude_of_Central_Meridian: -159
- Latitude_of_Projection_Origin: 0.0
- False_Easting: 500000
- False_Northing: 0.0
- Planar_Coordinate_Information:
-
- Planar_Coordinate_Encoding_Method: Row and Column
- Coordinate_Representation:
-
- Abscissa_Resolution: 4
- Ordinate_Resolution: 4
- Planar_Distance_Units: meters
- Geodetic_Model:
-
- Horizontal_Datum_Name: D_WGS_1984
- Ellipsoid_Name: WGS_1984
- Semi-major_Axis: 6378137.000000
- Denominator_of_Flattening_Ratio: 298.257224
- Vertical_Coordinate_System_Definition:
-
- Depth_System_Definition:
-
- Depth_Datum_Name: mean lower low water
- Depth_Resolution: 0.01
- Depth_Distance_Units: meters
- Depth_Encoding_Method: Attribute Values
- Entity_and_Attribute_Information:
-
- Overview_Description:
-
- Entity_and_Attribute_Overview:
-
Depth values are real values based on the average of the
soundings that fell within the extracted grid cells. The number of
soundings per grid cell range from >1000 soundings in shallow depths
to as few as 20 soundings in deeper areas. A total error budget for
this survey has not been developed, but there are known inconsistencies between the
2009 and 20010 multibeam data. Therefore, the accuracy of depth
measurements should be considered to be within 2 meters.
- Entity_and_Attribute_Detail_Citation: none
- Distribution_Information:
-
- Distributor:
-
- Contact_Information:
-
- Contact_Organization_Primary:
-
- Contact_Organization:
-
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
- Contact_Address:
-
- Address_Type: mailing and physical address
- Address: NOAA IRC
- Address: NMFS/PIFSC/CRED
- Address: 1845 WASP Blvd., Building 176
- City: Honolulu
- State_or_Province: HI
- Postal_Code: 96818
- Contact_Voice_Telephone: 808 725-5360
- Contact_Facsimile_Telephone: 808 725-5429
- Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
- Contact_Instructions: e-mail preferred
- Resource_Description: Downloadable Data
- Distribution_Liability:
-
These data are not to be used for navigational purposes.
NOAA makes no warranty regarding these data, expressed or implied, nor
does the fact of distribution constitute such a warranty. NOAA cannot
assume liability for any damages caused by any errors or omissions in
these data, nor as a result of the failure of these data to function
on a particular system.
- Standard_Order_Process:
-
- Digital_Form:
-
- Digital_Transfer_Information:
-
- Format_Name: netCDF and Arc ASCII
- Format_Information_Content:
-
These data can be downloaded as either a 2-D binary netCDF raster
grid or an ArcGIS ASCII text file. The netCDF grid
is the default grid file format used by GMT (Generic Mapping
Tools), which created this file. More information can be located
at http://www.soest.hawaii.edu/gmt/and
http://www.unidata.ucar.edu/software/netcdf/. The Arc ASCII file,
for use in ESRI's (http://www.esri.com) GIS software, can be
converted to an Arc Raster Grid using ArcToolbox ASCII to Raster
conversion tool.
- Digital_Transfer_Option:
-
- Online_Option:
-
- Computer_Contact_Information:
-
- Network_Address:
-
- Network_Resource_Name:
-
ftp://ftp.soest.hawaii.edu/pibhmc/website/data/mhi/bathymetry/kaneohe_bathy_4m.zip
- Fees: None
- Metadata_Reference_Information:
-
- Metadata_Date: 20190605
- Metadata_Review_Date: 20111104
- Metadata_Contact:
-
- Contact_Information:
-
- Contact_Organization_Primary:
-
- Contact_Organization:
-
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
- Contact_Address:
-
- Address_Type: mailing and physical address
- Address: NOAA IRC
- Address: NMFS/PIFSC/CRED
- Address: 1845 WASP Blvd., Building 176
- City: Honolulu
- State_or_Province: HI
- Postal_Code: 96818
- Contact_Voice_Telephone: 808 725-5360
- Contact_Facsimile_Telephone: 808 725-5429
- Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov
- Contact_Instructions: e-mail preferred
- Metadata_Standard_Name: FGDC Content Standards for Digital Geospatial Metadata
- Metadata_Standard_Version: FGDC-STD-001-1998
- Metadata_Time_Convention: Universal Time
- Metadata_Access_Constraints: None
- Metadata_Use_Constraints: None
- CoRIS:
-
- CoRIS_ID: 20111104073413
- CoRIS_Children: None
- CoRIS_Beginning_Date: 20000101
- CoRIS_Ending_Date: 20101010
- CoRIS_Metadata_Link:
-
https://www.coris.noaa.gov/metadata/records/html/kaneohe_bathy_4m.html
- CoRIS_Tracking_ID: 6394
Generated by mp version 2.9.48 on Sat Apr 27 11:05:51 2024
