Mosaic of 5m gridded multibeam bathymetry and bathymetry derived from multispectral World View-2 satellite imagery of Swains Island, Territory of American Samoa, South Pacific, USA

Identification_Information:

Citation:

Citation_Information:

Originator:

Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)

Publication_Date: 20140201
Title:

Mosaic of 5m gridded multibeam bathymetry and bathymetry derived from multispectral World View-2 satellite imagery of Swains Island, Territory of American Samoa, South Pacific, USA

Geospatial_Data_Presentation_Form: raster digital data
Online_Linkage:

https://www.soest.hawaii.edu/pibhmc/cms/data-by-location/american-samoa/swains-island/swains-island-bathymetry/

Online_Linkage: https://www.soest.hawaii.edu/pibhmc/cms/

Description:

Abstract:

Gridded multibeam bathymetry is integrated with bathymetry derived from multpectral World View-2 satellite data. Gridded (5 m cell size) multibeam bathymetry collected aboard NOAA Ship Hiialaka'i and R/V AHI. Bathymetry values shallower than ~20 m were derived by gauging the reletive attenuation of coastal, blue, green and yellow spectral radiance as a function of depth. A multiple linear regression analysis of coastal,blue, green and yellow band spectral values against depth determined the variables of y-intercept, coastal,blue, green and yellow slope values. Variables then used in multivariate slope intercept formula to derive depth. Digital image processing to derive depths conducted with the ENVI 4.8 software program while data editing and integration was performed using ArcGIS 10. This data set is for the shelf environment of Swains Island, Territory of American Samoa.

Purpose:

The data were derived in support of NOAA Coral Reef Conservation Program goals. Goal 1 is to map all U.S. Coral Reef Ecosystems. This data set specifically addresses Objective 1 and 4: to develop high-resolution benthic maps and to characterize priority deep water reefs and associated habitats. This integration of derived bathymetry with multibeam sonar data provides a GIS layer with expanded spatial coverage that may be used for benthic and essential fish habitat characterization, and for the study of geologic features. By combining the dataset with other bathymetry, backscatter, derivatives, and in situ data, they collectively compose benthic habitat maps designed to be used to understand and predict shallow depth (0m to 150m) benthic habitats for organisms that inhabit coral reef ecosystems.

Supplemental_Information:

Gridded multibeam data were collected aboard the Hi'ialakai, a 218?' United States National Oceanographic and Atmospheric Administration (NOAA) research ship, aboard the R/V AHI (Acoustic Habitat Investigator), a 25?' survey launch owned and operated by the NOAA Pacific Islands Fisheries Science Center in Honolulu, HI. The metadata for the bathymetry is documented in the product metadata, Swains_10m_2010.txt. ftp://ftp.soest.hawaii.edu/pibhmc/website/data/amsamoa/bathymetry/Swains_10m.grd.txt Original World View-2 imagery was purchased to support the Pacific Islands Geographic Information System (GIS) project and National Ocean Service's (NOS) coral mapping activities. Orthographically corrected World View-2 Imagery was provided by by USDA NRCS. The metadata or this World View-2 imagery is documented in the original product metadat,10AUG26215148-M3DS-052573207020_01_P001.

Time_Period_of_Content:

Time_Period_Information:

Range_of_Dates/Times:

Beginning_Date: 20040210
Ending_Date: 20100826

Currentness_Reference: ground condition

Status:

Progress: Complete
Maintenance_and_Update_Frequency: As needed

Spatial_Domain:

Bounding_Coordinates:

West_Bounding_Coordinate: -171.93808
East_Bounding_Coordinate: -171.218733
North_Bounding_Coordinate: -10.934991
South_Bounding_Coordinate: -11.188662

Keywords:

Theme:

Theme_Keyword_Thesaurus: NCEI Geoportal Filter
Theme_Keyword: CoRIS_Metadata

Theme:

Theme_Keyword_Thesaurus: CRCP Project
Theme_Keyword:

Benthic Habitat Mapping and Characterization in the Pacific Islands Region

Theme_Keyword: 467

Theme:

Theme_Keyword_Thesaurus: CoRIS Theme Thesaurus
Theme_Keyword:

EARTH SCIENCE > Oceans > Bathymetry/Seafloor Topography > Bathymetry

Theme_Keyword:

EARTH SCIENCE > Oceans > Bathymetry/Seafloor Topography > Water Depth

Theme_Keyword:

EARTH SCIENCE > Biosphere > Zoology > Corals > Reef Monitoring and Assessment > Remote Sensing > Satellite (digital scans) > WorldView-2

Theme:

Theme_Keyword_Thesaurus: None
Theme_Keyword: Slope
Theme_Keyword: Bathymetry
Theme_Keyword: Multibeam sonar

Theme:

Theme_Keyword_Thesaurus: ISO 19115 Topic Category
Theme_Keyword: elevation
Theme_Keyword: 006

Theme:

Theme_Keyword_Thesaurus: CoRIS Discovery Thesaurus
Theme_Keyword: Geographic Information > Bathymetry

Place:

Place_Keyword_Thesaurus: None
Place_Keyword: Swains Island
Place_Keyword: American Samoa
Place_Keyword: United States of America

Place:

Place_Keyword_Thesaurus: CoRIS Place Thesaurus
Place_Keyword:

OCEAN BASIN > Pacific Ocean > American Samoa > Swains Atoll (11S171W0001)

Place_Keyword:

COUNTRY/TERRITORY > United States of America > American Samoa > American Samoa > Swains Atoll (11S171W0001)

Place:

Place_Keyword_Thesaurus: CoRIS Region
Place_Keyword: American Samoa

Access_Constraints: None
Use_Constraints:

These data are not to be used for navigation purposes. Please acknowledge the NOAA Coral Reef Ecosystem Division, Pacific Islands Fisheries Science Center and the Pacific Islands Benthic Habitat Mapping Center, School of Ocean and Earth Science and Technology, University of Hawaii as the sources of this information.

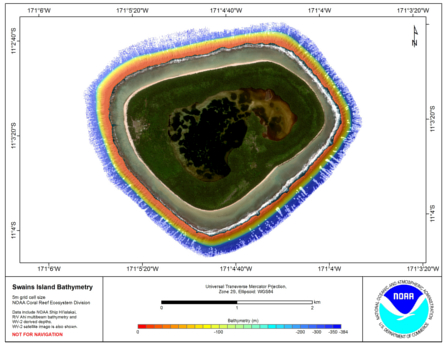

Browse_Graphic:

Browse_Graphic_File_Name:

https://www.soest.hawaii.edu/pibhmc/amsamoa_images/SWA_DBMB_5m_445.jpg

Browse_Graphic_File_Description: Gridded Bathymetry
Browse_Graphic_File_Type: jpg

Data_Set_Credit:

Benthic Habitat Mapping Group, Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), NOAA

Security_Information:

Security_Classification_System: Not applicable
Security_Classification: Unclassified
Security_Handling_Description: Not applicable

Native_Data_Set_Environment:

ArcGIS ASCII file or ArcGIS Grid file, bathymetry derived from 2x2m multispectral satellite imagery (World View-2) using ENVI 4.8, multibeam and derived bathymetry were integrated using ArcGIS 10

Data_Quality_Information:

Attribute_Accuracy:

Attribute_Accuracy_Report:

Data are collected for resource management and research purposes and are tested for internal consistency; however, no effort is made to compare these data to external references or to other published data.

Logical_Consistency_Report:

These data are believed to be logically consistent though no tests were performed

Completeness_Report: Complete
Positional_Accuracy:

Horizontal_Positional_Accuracy:

Horizontal_Positional_Accuracy_Report:

Horizontal positioning system: GPS C/A Horizontal position accuracy: 25 meters

Vertical_Positional_Accuracy:

Vertical_Positional_Accuracy_Report:

Range resolution of sonar: varies with depth Raw sounding resolution: varies with depth Vertical accuracy of gridded sonar product: ~ 1% of water depth Vertical accuracy of derived bathymetry product: 2 meter mean

Lineage:

Process_Step:

Process_Description:

Multiple tools in ENVI 4.8 were used to complete the following processing steps: Data conversion from digital number to radiance, correction for atmosphere and water surface reflection, masking of non-applicable values, and bathymetric derivation using variables from multiple linear regression analysis. Multiple tools in ArcGIS 10 were used for dataset integration and to extract values for the multiple linear regression analysis and subsequent error analyses. The Microsoft program Excel was used for the multiple linear regression analysis to provide original variables for depth derivation. The multivariate slope intercept formula used to derive depth was Depth=Yint+(Mcoastal)(Xcoastal)+(Mblue)(Xblue)+ (Mgreen)(Xgreen)+(Myellow)(XYellow).Two products were derived, both from the original image 10AUG26215148-M3DS-052573207020_01_P001, which was devided into Swains shallow and deep.The MLR variables for "Swains shallow" was Yint=-1.200274621, Mcoastal=-0.077167143, Mblue=-0.069652146, Mgreen=0.200453994, Myellow=-0.086658075, for "Swains deep" were Yint=5.36438271, coastal=-0.766939814, Mblue=0.024300732, Mgreen=1.546256648, Myellow=-0.072663819 and The derived bathymetry were in turn mosaiced giving the data from Swains shallow priority in depth >/=-6 and Swains deep in depth <-6 due to its statistaclly higher accuracy. This mosaiced derived bathymetry product (SWA_DBAll_2m)was then integrated with the multibeam sonar data, with sonar data prioritized over derived data, to create the final product (SWA_DBMB_5m). A detailed description of all processing steps and an error analysis of each derived bathymetry grid used is available upon request.

Process_Date: 20140109

Spatial_Data_Organization_Information:

Direct_Spatial_Reference_Method: Raster
Raster_Object_Information:

Raster_Object_Type: Pixel
Row_Count: 603
Column_Count: 721
Vertical_Count: 1

Spatial_Reference_Information:

Horizontal_Coordinate_System_Definition:

Planar:

Grid_Coordinate_System:

Grid_Coordinate_System_Name: Universal Transverse Mercator
Universal_Transverse_Mercator:

UTM_Zone_Number: -2
Transverse_Mercator:

Scale_Factor_at_Central_Meridian: 0.9996
Longitude_of_Central_Meridian: -171
Latitude_of_Projection_Origin: 0
False_Easting: 500000
False_Northing: 10000000

Planar_Coordinate_Information:

Planar_Coordinate_Encoding_Method: row and column
Coordinate_Representation:

Abscissa_Resolution: 5
Ordinate_Resolution: 5

Planar_Distance_Units: meters

Geodetic_Model:

Horizontal_Datum_Name: D_WGS_1984
Ellipsoid_Name: WGS_1984
Semi-major_Axis: 6378137.000000
Denominator_of_Flattening_Ratio: 298.257224

Distribution_Information:

Distributor:

Contact_Information:

Contact_Organization_Primary:

Contact_Organization:

Contact_Address:

Address_Type: mailing and physical address
Address: NOAA IRC
Address: NMFS/PIFSC/CRED
Address: 1845 WASP Blvd., Building 176
City: Honolulu
State_or_Province: HI
Postal_Code: 96818
Country: USA

Contact_Voice_Telephone: 808 725-5360
Contact_Electronic_Mail_Address: nmfs.pic.credinfo@noaa.gov

Resource_Description: Downloadable Data
Distribution_Liability:

These data are not to be used for navigational purposes. NOAA makes no warranty regarding these data, expressed or implied, nor does the fact of distribution constitute such a warranty. NOAA cannot assume liability for any damages caused by any errors or omissions in these data, nor as a result of the failure of these data to function on a particular system.

Standard_Order_Process:

Digital_Form:

Digital_Transfer_Information:

Format_Name: Arc Grid
Format_Information_Content:

Arc Grid can be opened directly using ArcMap or ArcCatalog.

Digital_Transfer_Option:

Online_Option:

Computer_Contact_Information:

Network_Address:

Network_Resource_Name:

ftp://ftp.soest.hawaii.edu/pibhmc/website/data/amsamoa/bathymetry/SWA_DBMB_5m.zip

Fees: None

Mosaic of 5m gridded multibeam bathymetry and bathymetry derived from multispectral World View-2 satellite imagery of Swains Island, Territory of American Samoa, South Pacific, USA
